Diamond Bonded Tools
Diamond Bonded Tools

More Views:

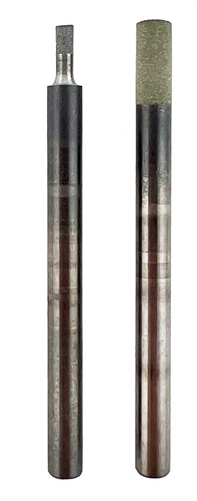

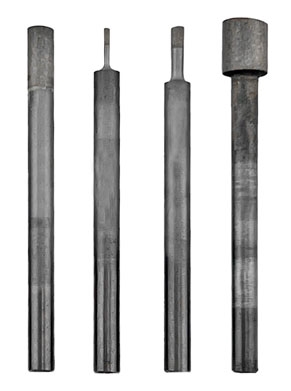

Bonded tools retain their shape and last longer than plated tools, because as the bond and diamond section wear, new diamond is exposed. When compared with plated tools, bonded tools produce a finer surface finish and allow grinding closer to end point targets with significantly less damage. Metal bond tools are for grinding non-metal alloys such as silicon, silicon carbide and mineral-/silica-filled resins in molded electronic devices. Resin bond is recommended for grinding hard, brittle materials that have a higher chance of cracking.

Coarse: Recommended for ceramics.
Medium: Recommended for ceramics.
Fine: Recommended for mold compound, ceramic and bulk silicon.
Very Fine: Recommended for silicon.SAFETY DATA SHEET


Item# Item Name Qty Add
15-9105 Metal Bond Tool Sharpening Adapter for MultiPrep System, 3 mm Ø Shank. Re-shapes tools to original or defined chamfer up to 10°. Includes 6 µm & 70 µm Dia-Grid Diamond Discs
15-92CMB3.0 Diamond Tool – Coarse, Metal Bond, 3.0 mm D x 1.5" L x 3 mm shank (Pk/2)
15-92MMB1.0 Diamond Tool – Medium, Metal Bond, 1.0 mm D x 1.5” L x 3 mm shank (Pk/2)
15-92MMB1.5 Diamond Tool – Medium, Metal Bond, 1.5 mm D x 1.5” L x 3 mm shank (Pk/2)
15-92MMB3.0 Diamond Tool – Medium, Metal Bond, 3.0 mm D x 1.5" L x 3 mm shank (Pk/2)
15-92MRB1.5 Diamond Tool – Medium, Resin Bond, 1.5 mm Ø x 38 mm L x 3 mm shank (Pk/2)
15-92MRB3.0 Diamond Tool – Medium, Resin Bond, 3 mm Ø x 38 mm L x 3 mm shank (Pk/2)
15-92FMB0.55 Diamond Tool – Fine, Metal Bond, 0.55 mm D x 1.5" L x 3 mm shank (Pk/2)
15-92FMB0.7 Diamond Tool – Fine, Metal Bond, 0.7 mm D x 1.5" L x 3 mm shank (Pk/2)
15-92FMB1.0 Diamond Tool – Fine, Metal Bond, 1.0 mm D x 1.5" L x 3 mm shank (Pk/2)
15-92FMB1.5 Diamond Tool – Fine, Metal Bond, 1.5 mm D x 1.5" L x 3 mm shank (Pk/2)
15-92FMB1.5-45 Diamond Tool; Fine, Metal Bond, 1.5 mm x 38 mm L with 45-deg Cone Point (Pk/4)
15-92FMB2.0 Diamond Tool – Fine, Metal Bond, 2 mm D x 1.5" L x 3 mm shank (Pk/2)
15-92FMB3-45 Diamond Tool - Fine, Metal Bond, 3 mm x 38 mm L with 45-deg Cone Point (Pk/4)
15-92FMB3.0 Diamond Tool – Fine, Metal Bond, 3.0 mm D x 1.5" L x 3 mm shank (Pk/2)
15-92VFMB0.2 Diamond Tool – Very Fine, Metal Bond, 0.2 mm D x 1.5" L x 3 mm shank (Pk/2)
15-92VFMB0.4 Diamond Tool – Very Fine, Metal Bond, 0.4 mm D x 1.5" L x 3 mm shank (Pk/2)
15-92VFMB0.5 Diamond Tool – Very Fine, Metal Bond, 0.5 mm D x 1.5" L x 3 mm shank (Pk/2)
15-92VFMB0.70 Diamond Tool – Very Fine, Metal Bond, 0.7 mm D x 1.5" L x 3 mm shank (Pk/2)
15-92VFMB1.0 Diamond Tool – Very Fine, Metal Bond, 1.0 mm D x 1.5" L x 3 mm shank (Pk/2)
15-92VFMB1.5 Diamond Tool – Very Fine, Metal Bond, 1.5 mm D x 1.5" L x 3 mm shank (Pk/2)
15-92VFMB2.0 Diamond Tool – Very Fine, Metal Bond, 2 mm D x 1.5" L x 3 mm shank (Pk/2)
15-92VFMB3.0 Diamond Tool – Very Fine, Metal Bond, 3.0 mm D x 1.5" L x 3 mm shank (Pk/2)
15-92VFMB5.0 Diamond Tool – Very Fine, Metal Bond, 5.0 mm D x 1.5" L x 3 mm shank (Pk/2)



Extended Information:

This product can be used with Allied's X-Prep and other mechanical milling machines. Browse our machines >>
